MEGASPAN® Purlins & Girts

Metroll Megaspan® purlins and girts are a range of performance enhanced Z and C purlins. The profile has been optimised to deliver capacity improvements of more than 20% compared with standard purlins. Metroll Megaspan® purlins and girts are used primarily in the design of sheds, industrial and commercial buildings. Sections are typically used to support roof and wall sheeting in these buildings.

Metroll Megaspan purlins and girts are manufactured from high tensile G450, G500 or G550 galvanised steel, with a minimum of Z350 galvanised coating (350g/m2) conforming to AS1397. 3. Not all styles are available in all branches. Minimum order quantities may apply. Lead times may apply. Contact your Metroll branch for details.

Important Note:
It is important that standard purlins from Metroll or other suppliers ARE NOT substituted for designs utilising information from the Megaspan design manual. As Megaspan is a higher performance section, standard purlins will not deliver the same load capacities and hence may be under-designed and potentially unsafe.

Megaspan® Section Selector:
Metroll have developed an online selection tool making it easier for designers, builders and contractors to identify the best Megaspan section for the job. Simply click here, enter the project details and in a matter of seconds see which Megaspan™ section will suit your application.

Click for Online Selection Tool

Megaspan C Section CAD Downloads
DOWNLOAD – Megaspan C150 – 12.dxf
DOWNLOAD – Megaspan C150 – 15.dxf
DOWNLOAD – Megaspan C150 – 19.dxf
DOWNLOAD – Megaspan C150 – 24.dxf
DOWNLOAD – Megaspan C200 – 15.dxf
DOWNLOAD – Megaspan C200 – 19.dxf
DOWNLOAD – Megaspan C200 – 24.dxf
DOWNLOAD – Megaspan C250 – 19.dxf
DOWNLOAD – Megaspan C250 – 24.dxf
DOWNLOAD – Megaspan C300 – 24.dxf

Megaspan Z Section CAD Downloads
DOWNLOAD – Megaspan Z150 – 12.dxf
DOWNLOAD – Megaspan Z150 – 15.dxf
DOWNLOAD – Megaspan Z150 – 19.dxf
DOWNLOAD – Megaspan Z150 – 24.dxf
DOWNLOAD – Megaspan Z200 – 15.dxf
DOWNLOAD – Megaspan Z200 – 19.dxf
DOWNLOAD – Megaspan M250 – 19.dxf
DOWNLOAD – Megaspan M250 – 24.dxf

  • An optimised profile delivering improved capacities
  • Maximises efficiencies
  • Strong
  • Ideal for sheds, industrial and commercial buildings
  • image of a large shed under construction showing the purlins and girts.
  • PDF Datasheet

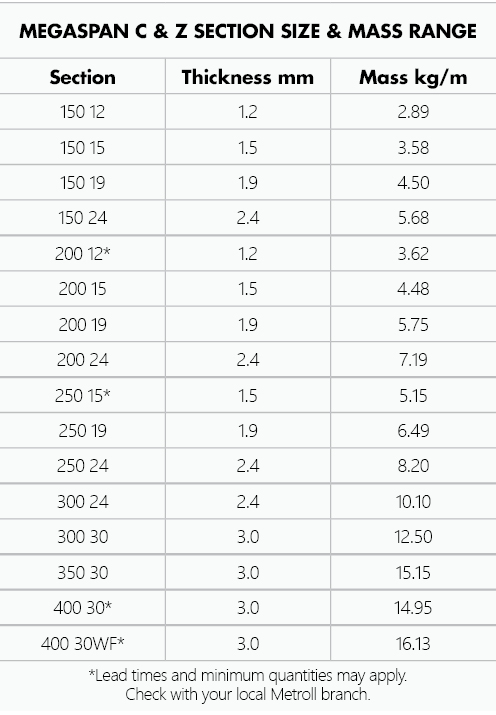

Spec table showing section thickness and mass.

Standard C Section

line drawing of a standard c section

Downturn Lip C Section

Line drawing of a downturn lip c section

Nestable Lip C Section

Not available in WA

Line drawing of a nestable c section

Standard Z Section

Line drawing of a standard z section

Lappable Z Sections - Alternative Bays

Line drawing of lappable z sections
Available in all States
Map of Australia showing all states selected
