Split Door Frame

A split profile is made in two halves and fitted from each side of the opening. It is of welded construction with counter-sunk holes for fixing and removable spreader bars to each half of the frame. Suitable for stud work applications or retrofitted into brick/block or concrete work.

Metroll Split Door Frames can be made with a wider architrave to enable the fixings to be positioned further away from the brickwork edge.

  • All dimensions can be altered to suit applications
  • Split Door Frames are compatible with most hardware types
  • Custom sizes available with additional lead time
  • Quick and easy to install
  • Ideal for various wall thicknesses
  • All dimensions can be altered to suit
  • Compatible with most hardware types
  • Custom sizes available with additional lead time
  • Suitable for thicknesses 85 -120mm

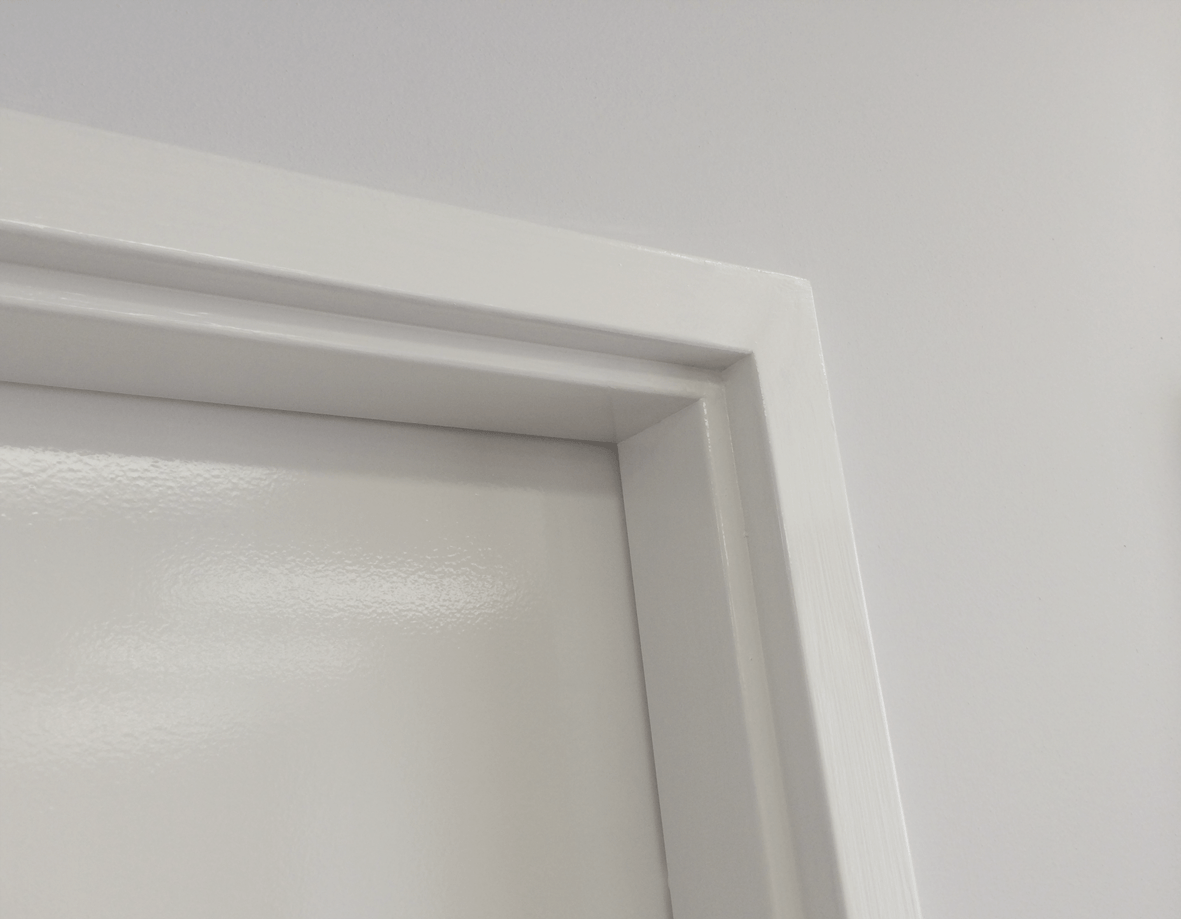

  • Photo of a split door frame installed.

  • PDF Datasheet

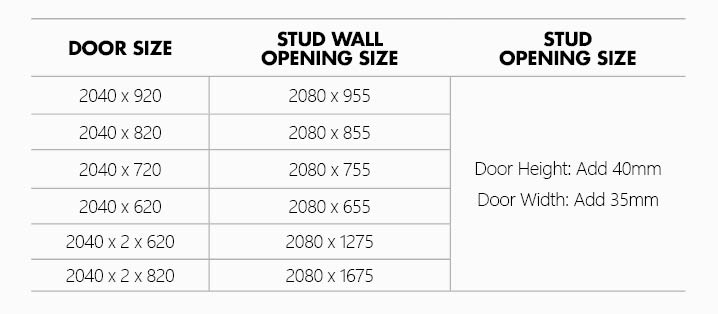

Split Door Frame spec table showing door size and stud wall opening size.

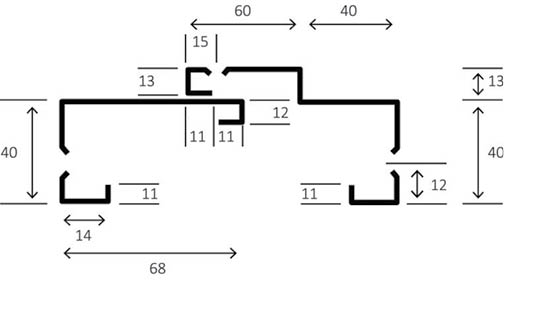

Line drawing of split door frame showing all dimensions.
Available in WA only
